Buy direct from the manufacturer. 13 models across four families — P3 3mm pitch, 8,000 nits, five-year warranty, built in 3–6 weeks. Buy direct from the builder. 13 models, P3, 8,000 nits, 5-yr warranty.
Fold-out and fixed-screen LED trailers built to order. P3 3mm pitch, 8,000 nits, lift standard, five-year warranty, 3–6 week build. Fold-out and fixed LED trailers. P3, 8,000 nits, 5-yr warranty.
Built to order · Same-day quotes · 3–6 week build · See all 13 models
Built to order · Same-day quotes · 3–6 week build · See all 13 models
Full deployment, start to finish · Real time, no speed-up
Every model runs the same LED platform — P3, 192×192 mm modules, 64×64 px per module, 8,000 nits, 5,600 Hz. What changes between families is mechanical format and scale, never image quality.
Three-sided fold-out trailers that lift the screen clear of crowds and parked vehicles. The widest unfolds past 30 feet.
Fixed-screen simplicity with lift standard on every tier. Each available Single, Dual, Single-R or Dual-R.
The same fold-out geometry on a driveable chassis. No towing, no trailer permit, no separate tow vehicle.
Fixed seamless three-sided trucks. One rear plus two side displays, always ready — no lift, no fold, no rotation, nothing to fail.
Mast-raised, self-powered, 100,000+ hour rated life. Corporate decks, private events, or a route you own outright.
Real resolutions and real power figures — not rounded marketing numbers. Send this table to whoever signs off on the purchase.
| Model | Format | Display | Resolution | Pixels | Power | Lift / Rotate |
|---|---|---|---|---|---|---|
| FoldOut Trailer Series | ||||||
| Compact Pro A1 | Fold-out trailer | 15 × 8 | 960 × 512 | 491,520 | Battery + opt. 3 kW | ≈5 ft lift / none |
| Flex 360 R1 | Fold-out trailer | 18 × 10 | 1,152 × 640 | 737,280 | 7 kW generator | ≈90 in / 360° |
| Max 360 X1 | Fold-out trailer | 27 × 12 | 1,728 × 768 | 1,327,104 | 12 kW generator | ≈90 in / 360° |
| SuperMax X1 | Fold-out trailer | 48 × 12 | 3,072 × 768 | 2,359,296 | 21 kW generator | Raised / none |
| Elite Non-FoldOut Trailer Series — Single / Dual / Single-R / Dual-R | ||||||
| Elite M | Fixed trailer | 18 × 10 | 1,152 × 640 | 737,280 | ≈6.3 / 12.6 kW | Standard / opt. -R |
| Elite SuperMax | Fixed trailer | 24 × 12 | 1,536 × 768 | 1,179,648 | ≈10.08 / 20.16 kW | Standard / opt. -R |
| Elite Titan X | Fixed trailer | 32 × 15 | 2,048 × 960 | 1,966,080 | ≈16.8 / 33.6 kW | Standard / opt. -R |
| FoldOut Truck Series | ||||||
| Flex T1 | Pickup, fold-out | 18 × 10 | 1,152 × 640 | 737,280 | 7 kW generator | Raised / none |
| Max T1 | Truck, fold-out | 27 × 12 | 1,728 × 768 | 1,327,104 | 12 kW generator | Raised / none |
| SuperMax T1 | Truck, fold-out | 48 × 12 | 3,072 × 768 | 2,359,296 | 21 kW generator | Raised / none |
| Tri-View Truck Series — fixed seamless 3-sided | ||||||
| Tri-View Flex T1 | Pickup, 3-sided | 18 × 10 | 1,152 × 640 | 737,280 | 7 kW generator | None / none |
| Tri-View Max T1 | Truck, 3-sided | 27 × 12 | 1,728 × 768 | 1,327,104 | 12 kW generator | None / none |
| Tri-View SuperMax T1 | Truck, 3-sided | 48 × 12 | 3,072 × 768 | 2,359,296 | 21 kW generator | None / none |
All models: P3 LED · 192 × 192 mm modules · 64 × 64 px per module · 8,000 nits · 5,600 Hz.
Power sized by the 350 W per 10 modules rule. Dual-screen Elite figures shown as single / dual.
Most companies selling you an LED truck imported the panels and bolted them to a chassis. We engineer our own boards and fabricate every unit in Las Vegas.
The process that makes 3mm pitch survivable outdoors. It cannot be replicated by another manufacturer.
Our own PCBs, designed for pixel density and power efficiency off-the-shelf parts can't reach.
3× industry power handling. Readable in direct Las Vegas summer sun with no washout.
CEO Craig has lit shows for Michael Jackson, Pink Floyd and Stevie Wonder. That's in every build.

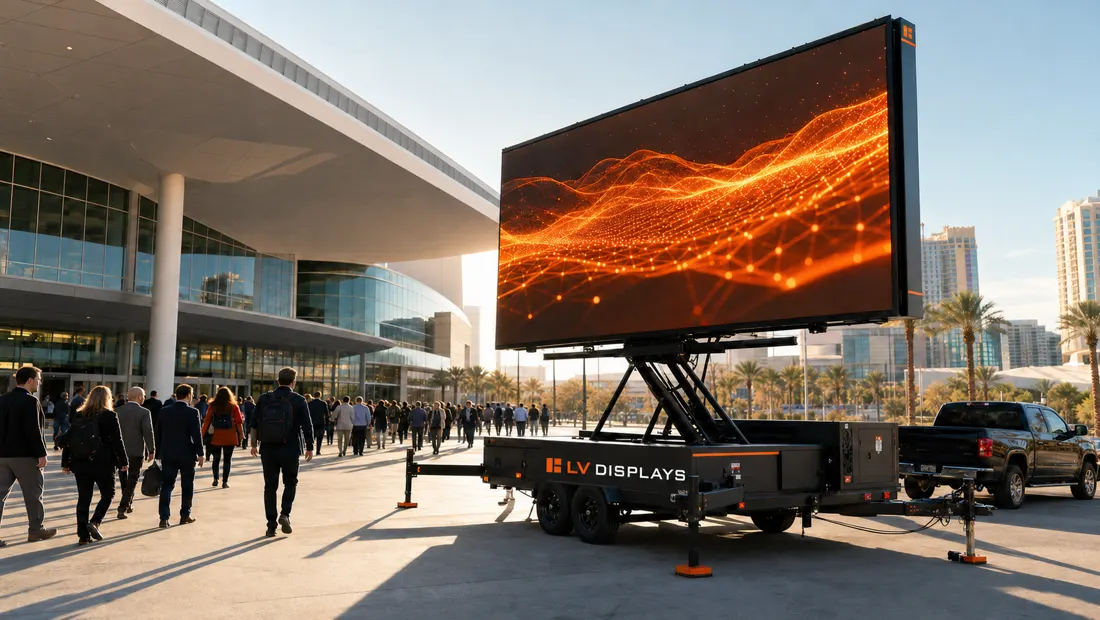

Sun behind the screen, suits walking past, still legible. That is what 8,000 nits and a patented UV coating buy you — the only reason a 3mm pitch survives outdoors.
Every unit is built to order in Las Vegas and tested before it ships. Financing and fleet pricing available. We ship and install nationwide and internationally.
Price depends on model, display size, generator package and chassis — the range across the thirteen models is wide. Call 1-888-LED-5010 and we'll price the exact configuration you need, usually the same day.
Typically 3–6 weeks from order to delivery. Custom fabrications outside the standard thirteen models may run longer — we'll tell you honestly before you commit.
A trailer is cheaper to acquire and can be dropped on site and left, but you need a tow vehicle and somewhere to park both. A truck is one driveable asset with no towing requirement. If the unit will move several times a day, buy the truck. If it parks for days at a time, the trailer usually wins on cost.
FoldOut models unfold into a wider panoramic face and lift the screen for visibility over crowds — more impact, but there's a deployment step. Tri-View trucks are fixed seamless three-sided displays with no lift, fold or rotation: less peak width, but they're live the second you park and there's no deployment mechanism to maintain.
P3 LED with 192 × 192 mm modules at 64 × 64 pixels each, 8,000 nits brightness and 5,600 Hz refresh, rated 100,000+ hours. Per-model resolutions are in the comparison table above — we publish the real numbers rather than rounding them up.
Every model except the battery-based Compact Pro A1 carries an integrated generator sized to its display load, from 7 kW up to 21 kW. Sizing follows roughly 350 watts per 10 modules. No external hookup required at the deployment site.
Yes. Custom fabrication is a core part of the business — vehicles, structures, and one-off configurations for concerts, campaigns and retail. Tell us the requirement and we'll tell you whether it's buildable and what it costs.
Yes. We ship and install nationwide and internationally, with operations in Las Vegas, New York City and Hong Kong.
Every unit runs P3 at 8,000 nits and 5,600 Hz. What changes between models is mechanical format and scale — never image quality.
Compact Pro A1
15 × 8 modules · 960 × 512Flex 360 R1
18 × 10 modules · 1,152 × 640Max 360 X1
27 × 12 modules · 1,728 × 768SuperMax X1
48 × 12 modules · 3,072 × 768Elite M
18 × 10 modules · 1,152 × 640Elite SuperMax
24 × 12 modules · 1,536 × 768Elite Titan X
32 × 15 modules · 2,048 × 960Flex T1
18 × 10 modules · 1,152 × 640Max T1
27 × 12 modules · 1,728 × 768SuperMax T1
48 × 12 modules · 3,072 × 768Tri-View Flex T1
18 × 10 modules · 1,152 × 640Tri-View Max T1
27 × 12 modules · 1,728 × 768Tri-View SuperMax T1
48 × 12 modules · 3,072 × 768P3 · 192 × 192 mm modules · 64 × 64 px per module · 8,000 nits · 5,600 Hz
Power sized at roughly 350 W per 10 modules · 5-year warranty · Built in Las Vegas
Same-day quotes · 5-year warranty · Built in Las Vegas
